IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ20 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine. Features: Composite Material IAG-Spec Alloy Ring Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications .

Fitment

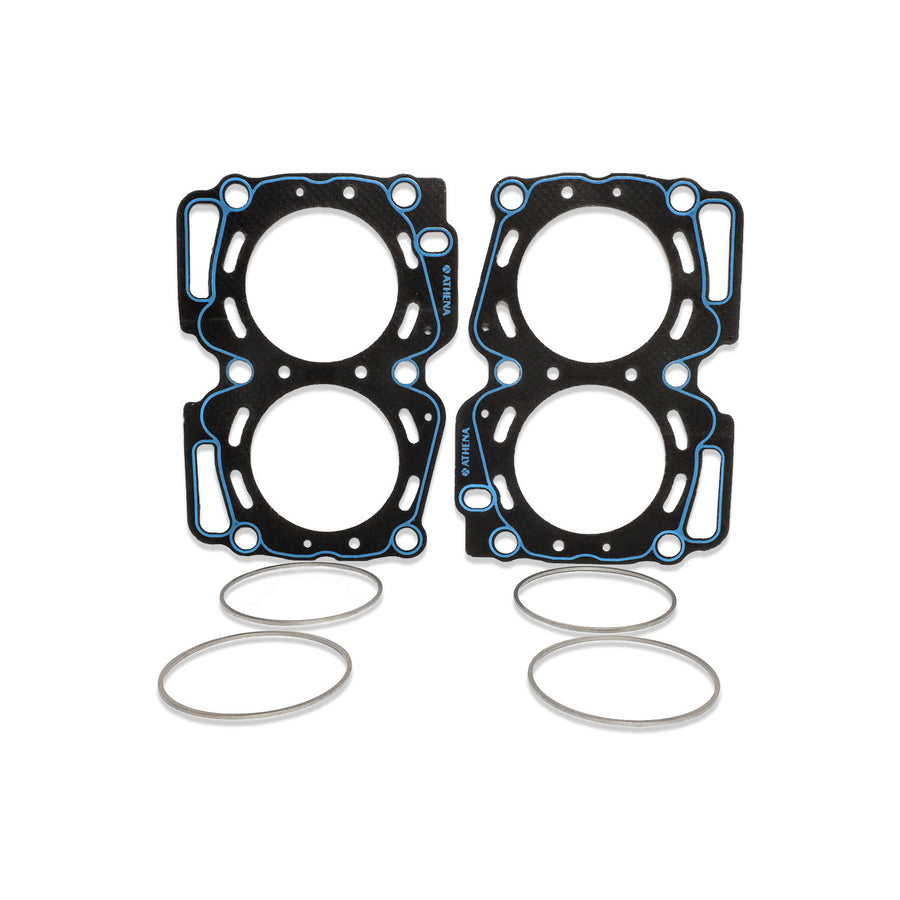

Kit Includes: (2x) Fire-lock gaskets, (4x) Fire-lock ringsThe IAG Fire-Lock gaskets require machine work for installation and are recommended for use with 14mm head stud hardware.IAG ARP 14mm Head Studs RequiredThe gaskets are sold in pairs with four Fire-lock rings.If a block or cylinder head was previously o-ringed the groove must be filled and resurfaced before using this type of gasketThese gaskets require IAG ARP 14mm head studs to achieve the required torque necessary for proper installation. Due to the required torque, any block that was previously honed will need to go to the next size overbore. Future servicing will require cylinder head resurfacing due to an imprint left from the Fire-lock rings.Note Machine Work with IAG is REQUIRED

Specifications

Manufacturer part number

IAG-ENG-1745

UPC

00887753778154

Shipping weight & size

0.70 lb, 13 × 8.5 × 0.5 in
