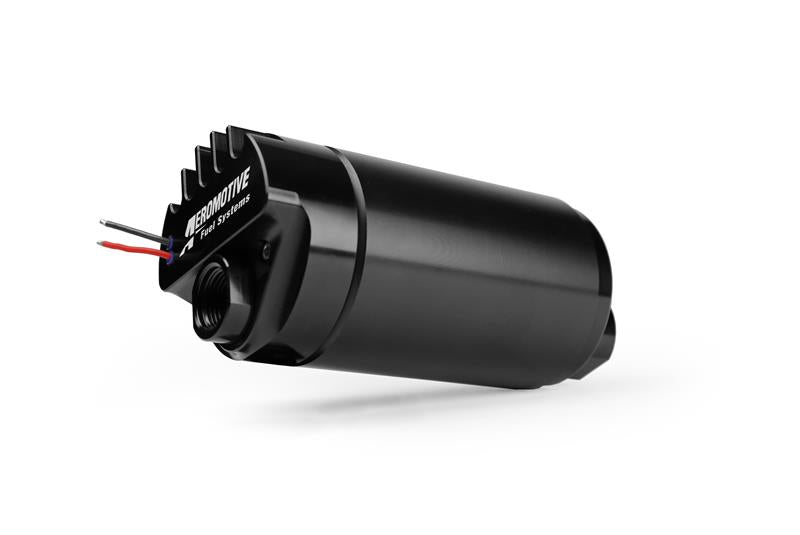

Aeromotive A1000 Brushless External Fuel Pump

Fuel injected engines: up to 1300 FWHP naturally aspirated and up to 1000 FWHP forced air induction. Carbureted engines: up to 1500 FWHP naturally aspirated and up to 1200 FWHP forced air induction. E85 compatible. Lighter and quieter than the traditional A1000 pump. Reduced current draw at higher pressures. Extended service life in methanol and ethanol. Integral, external brushless controller for clean installation, cooler fuel, and enhanced reliability. ORB-10 inlet and outlet ports. Requires straight 12-VDC to 16-VDC power supply. EFI rated flow of 700 lbs/hr at 45 psi and 13.5 volts. Carb rated flow of 900 lbs/hr at 9 psi and 13.5 volts. The same A1000 Fuel Pump the world has come to trust and depend on is now available with the latest brushless-motor technology. Built for up to 65 psi of sustained pressure, featuring our bedrock solid roller vane design that primes easily, reduces friction and improves efficiency. Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump). With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability. With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.

Fitment

In-Line Fuel Pump, Brushless, A1000-Series

Specifications

Manufacturer part number

11124

UPC

684980008784

Shipping weight & size

4.90 lb, 9.5 × 4.5 × 4.3 in

Documents

• Installation Instructions
• Installation Instructions

Notices

• Not legal for sale or use in California on pollution-controlled vehicles.
• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Special order item — ships direct from the manufacturer; extended lead times may apply.
