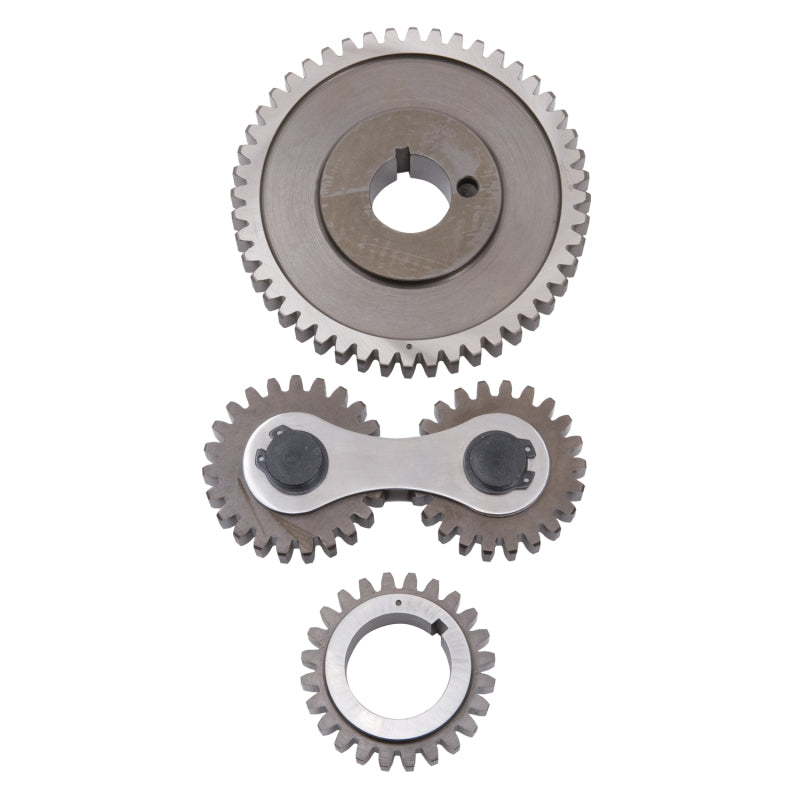

Edelbrock Accu-Drive Gear Drive Pontiac

Edelbrock part #7895 Accu-Drive camshaft gear drive kit for Pontiac 326-455 V8 engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive kit for Pontiac engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts.Features Include:- Accurate timing control..No chain to stretch- Provides multiple cam timing adjustments for optimum performance- Smooth cam rotation for precise valve timing

Fitment

Pontiac:-:326 (5.3L)-455 (7.5L)

• 1969 Pontiac Firebird 350
• 1969 Pontiac Firebird 350 HO
• 1969 Pontiac Firebird 400
• 1969 Pontiac Tempest Custom
• 1969–1970 Pontiac Bonneville Safari
• 1969–1970 Pontiac Catalina Ventura
• 1969–1970 Pontiac Executive Base
• 1969–1970 Pontiac Executive Safari
• 1969–1970 Pontiac LeMans Safari
• 1969–1970 Pontiac Tempest Base
• 1969–1973 Pontiac GTO Base
• 1969–1974 Pontiac Grand Prix Base
• 1969–1977 Pontiac Firebird Base
• 1969–1977 Pontiac LeMans Base
• 1969–1978 Pontiac Bonneville Base
• 1969–1978 Pontiac Catalina Base
• 1969–1978 Pontiac Catalina Safari
• 1969–1979 Pontiac Firebird Trans Am
• 1970 Pontiac Tempest GT
• 1970–1971 Pontiac GTO The Judge
• 1970–1977 Pontiac Firebird Esprit
• 1970–1977 Pontiac LeMans Sport
• 1970–1979 Pontiac Firebird Formula
• 1971 Pontiac LeMans T37
• 1971–1972 Pontiac Catalina Brougham
• 1971–1974 Pontiac Grandville Base
• 1971–1978 Pontiac Grand Safari Base
• 1972–1974 Pontiac LeMans Luxury
• 1972–1976 Pontiac Ventura Base
• 1973–1975 Pontiac Grand Am Base

…and 17 more applications.

Specifications

Manufacturer part number

7895

UPC

85347078950

Shipping weight & size

4.55 lb, 11.6 × 6.4 × 2.2 in
