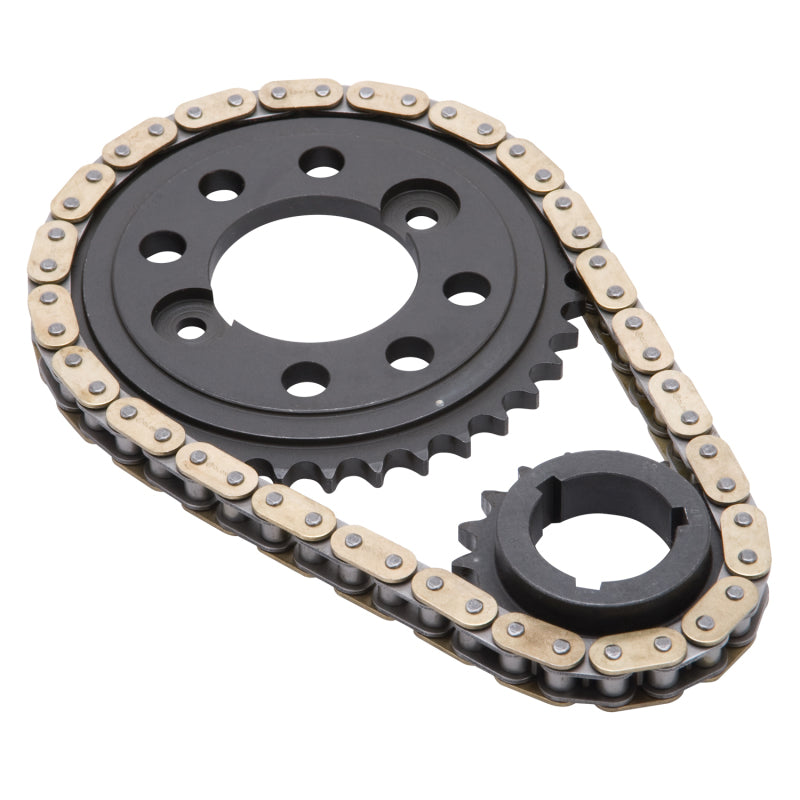

Edelbrock Timing Chain And Gear Set Buick 455

Edelbrock part #7840 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Buick:Big-Block:400 (6.6L)/430 (7.0L)/455 (7.5L)

• 1967 Buick Electra Base
• 1967 Buick Electra Custom
• 1967 Buick Gran Sport Base
• 1967–1968 Buick Skylark Base
• 1967–1969 Buick Wildcat Base
• 1967–1970 Buick Wildcat Custom
• 1967–1976 Buick Riviera Base
• 1968 Buick Skylark Custom
• 1968 Buick Sportwagon Base
• 1968 Buick Sportwagon Custom
• 1968–1969 Buick GS 400 Base
• 1968–1969 Buick Riviera GS
• 1968–1974 Buick Electra 225
• 1968–1974 Buick Electra 225 Custom
• 1970 Buick GS 455 GSX
• 1970 Buick Skylark Base
• 1970 Buick Skylark Custom
• 1970 Buick Sportwagon Base
• 1970–1972 Buick GS 455 Base
• 1970–1973 Buick LeSabre Custom
• 1970–1975 Buick LeSabre Base
• 1970–1976 Buick Estate Wagon Base
• 1971 Buick Riviera Gran Sport
• 1971–1973 Buick Centurion Base
• 1973 Buick Electra Base
• 1973–1974 Buick Century Base
• 1973–1974 Buick Century Luxus
• 1973–1974 Buick Regal Base
• 1974 Buick Electra 225 Limited
• 1974 Buick LeSabre Luxus

…and 7 more applications.

Specifications

Manufacturer part number

7840

UPC

85347078400

Shipping weight & size

3.80 lb, 9.8 × 6.6 × 1.4 in

Documents

• Warranty

Notices

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Special order item — ships direct from the manufacturer; extended lead times may apply.
