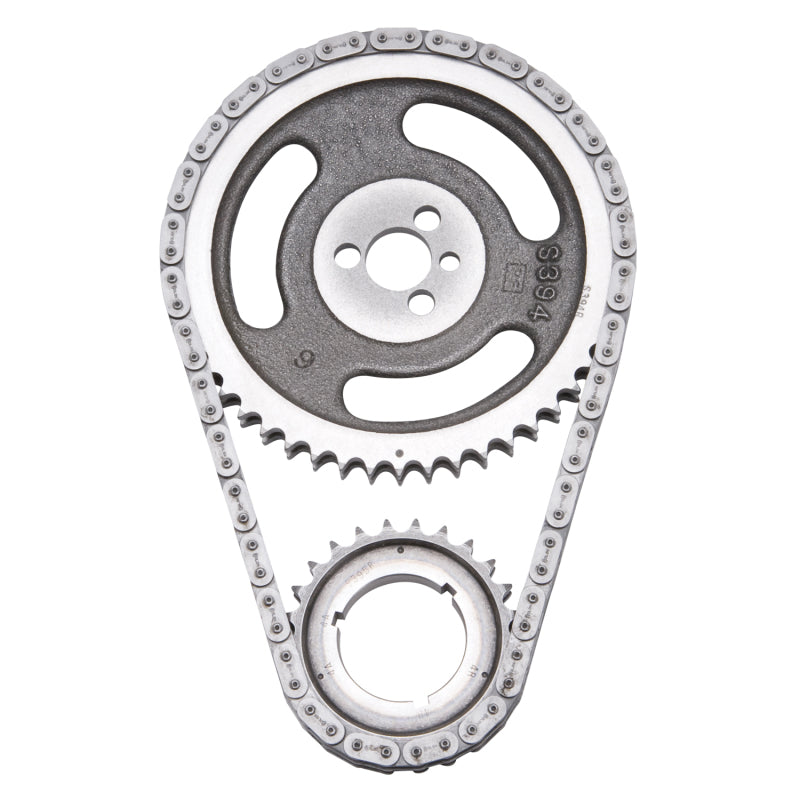

Edelbrock Timing Chain And Gear Set Chevy 396-454

Edelbrock part #7810 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L);Chevrolet:Big-Block Gen V:454 (7.4L)-502 (8.2L)

• 1992 Chevrolet C1500 Cheyenne
• 1992 Chevrolet C1500 Silverado
• 1992 Chevrolet C1500 WT
• 1992 Chevrolet C2500 Scottsdale
• 1992 Chevrolet C3500 Scottsdale
• 1992 Chevrolet K2500 Scottsdale
• 1992 Chevrolet K3500 Scottsdale
• 1992–1993 Chevrolet C1500 454 SS
• 1992–1993 GMC C2500 Sierra
• 1992–1993 GMC C2500 Sierra SLX
• 1992–1993 GMC C3500 Sierra
• 1992–1993 GMC C3500 Sierra SLX
• 1992–1994 Chevrolet C2500 Suburban Silverado
• 1992–1994 Chevrolet K2500 Suburban Silverado
• 1992–1995 Chevrolet C2500 Cheyenne
• 1992–1995 Chevrolet C2500 Silverado
• 1992–1995 Chevrolet C2500 Suburban Base
• 1992–1995 Chevrolet C3500 Cheyenne
• 1992–1995 Chevrolet C3500 Silverado
• 1992–1995 Chevrolet K2500 Cheyenne
• 1992–1995 Chevrolet K2500 Silverado
• 1992–1995 Chevrolet K2500 Suburban Base
• 1992–1995 Chevrolet K3500 Cheyenne
• 1992–1995 Chevrolet K3500 Silverado
• 1992–1995 GMC C2500 Sierra SLE
• 1992–1995 GMC C2500 Suburban Base
• 1992–1995 GMC C2500 Suburban SLE
• 1992–1995 GMC C3500 Sierra SLE
• 1992–1995 GMC G3500 Magnavan
• 1992–1995 GMC G3500 Rally

…and 36 more applications.

Specifications

Manufacturer part number

7810

UPC

85347078103

Shipping weight & size

3.95 lb, 10.7 × 6.5 × 1.4 in

Documents

• Warranty

Notices

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Special order item — ships direct from the manufacturer; extended lead times may apply.
