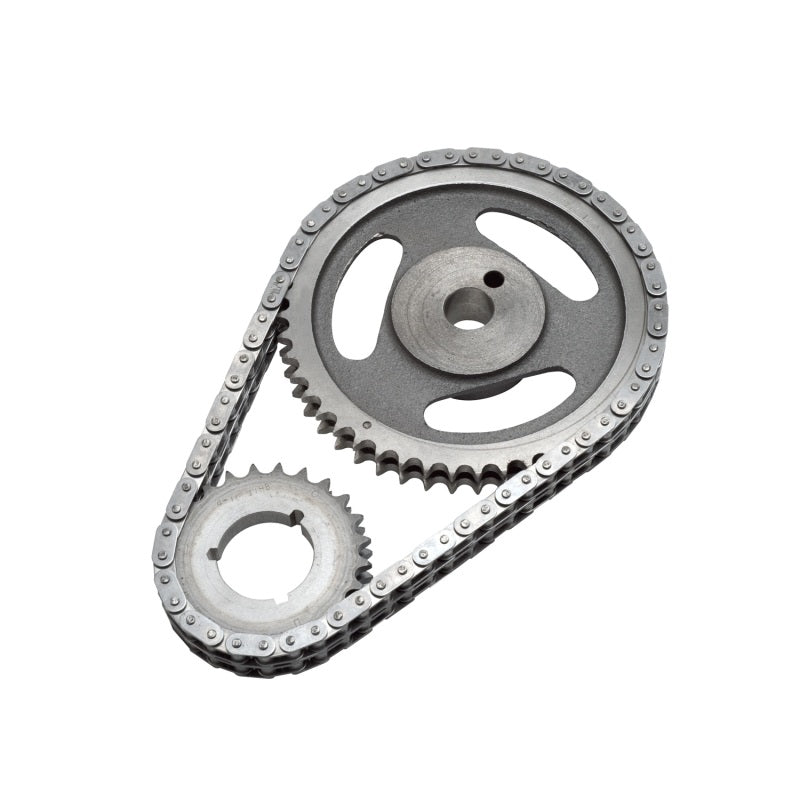

Edelbrock Timing Chain And Gear Set Ford 352-428

Edelbrock part #7808 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Ford:FE:332 (5.4L)-428 (7.0L)

• 1967 Ford Fairlane 500XL
• 1967 Ford Ranchero 500 XL
• 1967–1969 Ford Fairlane Base
• 1967–1969 Ford Ranchero 500
• 1967–1969 Ford Ranchero Base
• 1967–1970 Ford Fairlane 500
• 1967–1970 Ford Galaxie 500 XL
• 1967–1970 Ford Mustang Base
• 1967–1971 Ford Country Squire Base
• 1967–1971 Ford Galaxie 500 Base
• 1967–1971 Ford Ranch Wagon Base
• 1967–1972 Ford Country Sedan Base
• 1967–1974 Ford F-100 Base
• 1967–1974 Ford F-250 Base
• 1967–1974 Ford F-350 Base
• 1968 Ford Mustang Shelby GT-500KR
• 1968 Ford Thunderbird Base
• 1968 Mercury Commuter Base
• 1968 Mercury Montclair Base
• 1968 Mercury Park Lane Base
• 1968–1969 Ford Ranchero GT
• 1968–1969 Ford Torino Base
• 1968–1969 Ford Torino GT
• 1968–1969 Mercury Comet Base
• 1968–1969 Mercury Montego Base
• 1968–1969 Mercury Montego MX
• 1968–1970 Ford Mustang Shelby GT-500
• 1968–1970 Mercury Colony Park Base
• 1968–1970 Mercury Cougar Base
• 1968–1970 Mercury Cougar XR-7

…and 37 more applications.

Specifications

Manufacturer part number

7808

UPC

85347078080

Shipping weight & size

3.15 lb, 11 × 6 × 1.2 in

Documents

• Warranty

Notices

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Special order item — ships direct from the manufacturer; extended lead times may apply.
