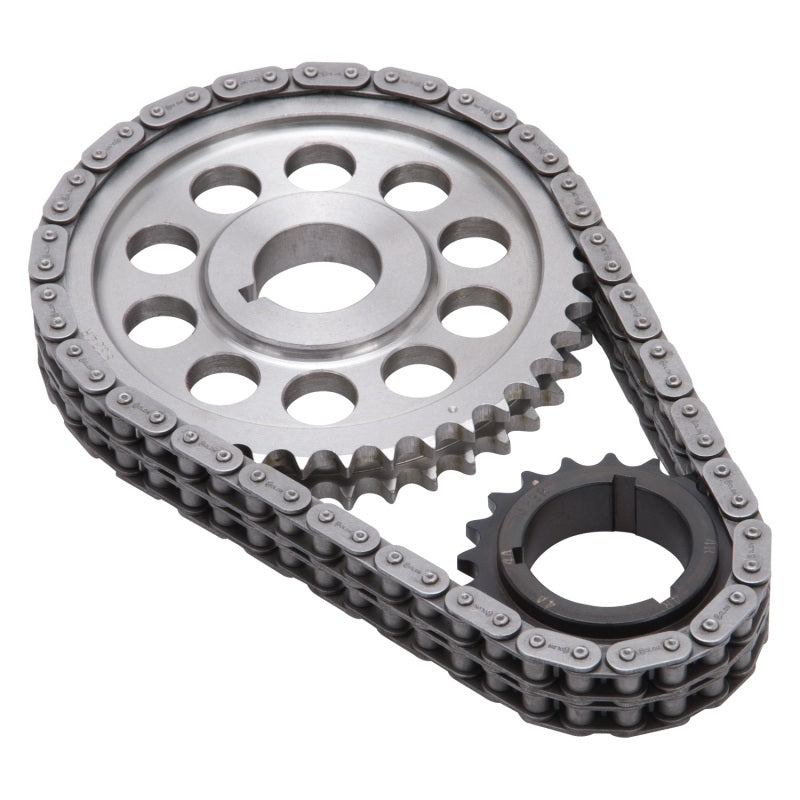

Edelbrock Timing Chain And Gear Set GM V-6 Odd

Edelbrock part #7828 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Buick:V6:198 (3.2L)/225 (3.7L)/231 (3.8L);Buick:V8:215 (3.5L);Oldsmobile:V6:198 (3.2L)/225 (3.7L)/231 (3.8L);Oldsmobile:V8:215 (3.5L);Pontiac:V6:198 (3.2L)/225 (3.7L)/231 (3.8L);Pontiac:V8:215 (3.5L)

• 1961–1963 Oldsmobile F85 Base
• 1961–1967 Buick Skylark Base
• 1961–1967 Buick Special Base
• 1961–1967 Buick Special Deluxe
• 1962–1963 Oldsmobile Cutlass Base
• 1962–1963 Oldsmobile F85 Deluxe
• 1962–1963 Oldsmobile Jetfire Base
• 1964 Buick Sportwagon Base
• 1975 Oldsmobile Starfire S
• 1975–1977 Buick Century Base
• 1975–1977 Buick Century Custom
• 1975–1977 Buick Century Special
• 1975–1977 Buick Regal Base
• 1975–1977 Buick Skyhawk Base
• 1975–1977 Buick Skyhawk S
• 1975–1977 Buick Skylark Base
• 1975–1977 Buick Skylark SR
• 1975–1977 Oldsmobile Starfire Base
• 1976 Pontiac Sunbird SJ
• 1976–1977 Buick LeSabre Base
• 1976–1977 Buick Regal SR
• 1976–1977 Buick Skylark S
• 1976–1977 Oldsmobile Starfire GT
• 1976–1977 Oldsmobile Starfire SX
• 1976–1977 Pontiac Sunbird Base
• 1977 Buick LeSabre Custom
• 1977 Oldsmobile Cutlass Colonnade
• 1977 Oldsmobile Cutlass Colonnade S
• 1977 Oldsmobile Cutlass S
• 1977 Oldsmobile Cutlass Supreme Base

…and 19 more applications.

Specifications

Manufacturer part number

7828

UPC

85347078288

Shipping weight & size

3.05 lb, 9.8 × 6.4 × 1.4 in

Documents

• Warranty

Notices

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Special order item — ships direct from the manufacturer; extended lead times may apply.
