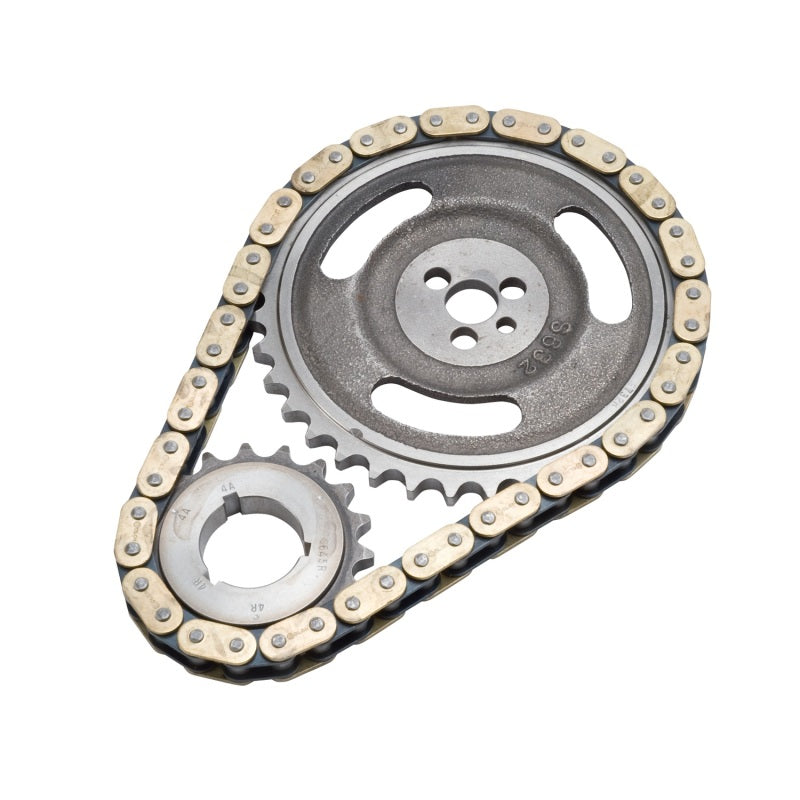

Edelbrock Timing Chain And Gear Set Late SB Chevy

Edelbrock part #7801 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Chevrolet:Small-Block 90 Deg V6:262 (4.3L);Chevrolet:Small-Block Gen I:305 (5.0L)-350 (5.7L)

• 1992 Chevrolet Blazer Cheyenne
• 1992 Chevrolet Blazer Silverado
• 1992 Chevrolet C1500 Scottsdale
• 1992 Chevrolet C1500 Suburban Base
• 1992 Chevrolet C1500 Suburban Silverado
• 1992 Chevrolet C2500 Scottsdale
• 1992 Chevrolet C2500 Suburban Base
• 1992 Chevrolet C2500 Suburban Silverado
• 1992 Chevrolet C3500 Cheyenne
• 1992 Chevrolet C3500 Scottsdale
• 1992 Chevrolet C3500 Silverado
• 1992 Chevrolet Camaro RS
• 1992 Chevrolet Camaro RS Heritage Edition
• 1992 Chevrolet Camaro Z28
• 1992 Chevrolet Camaro Z28 Heritage Edition
• 1992 Chevrolet G30 Sportvan
• 1992 Chevrolet K1500 Scottsdale
• 1992 Chevrolet K1500 Suburban Base
• 1992 Chevrolet K1500 Suburban Silverado
• 1992 Chevrolet K2500 Scottsdale
• 1992 Chevrolet K2500 Suburban Base
• 1992 Chevrolet K2500 Suburban Silverado
• 1992 Chevrolet K3500 Cheyenne
• 1992 Chevrolet K3500 Scottsdale
• 1992 Chevrolet K3500 Silverado
• 1992 Chevrolet S10 Blazer Sport
• 1992 Chevrolet S10 Tahoe
• 1992 GMC C1500 Sierra
• 1992 GMC C1500 Sierra SLE
• 1992 GMC C1500 Sierra SLX

…and 58 more applications.

Specifications

Manufacturer part number

7801

UPC

85347078011

Shipping weight & size

3.30 lb, 9.8 × 6.4 × 1.4 in

Documents

• Warranty

Notices

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Special order item — ships direct from the manufacturer; extended lead times may apply.
