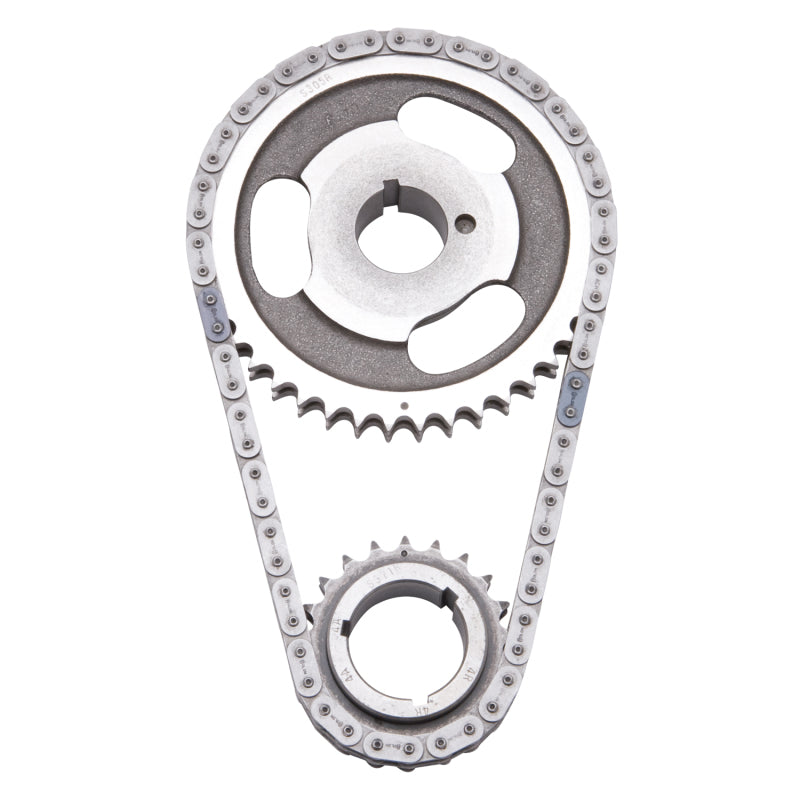

Edelbrock Timing Chain And Gear Set Pont 265-455

Edelbrock part #7812 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Pontiac:-:287 (4.7L)-455 (7.5L)

• 1968–1978 Pontiac Bonneville Base
• 1969 Pontiac Firebird 350
• 1969 Pontiac Firebird 350 HO
• 1969 Pontiac Firebird 400
• 1969 Pontiac Tempest Custom
• 1969 Pontiac Tempest Safari
• 1969–1970 Pontiac Bonneville Safari
• 1969–1970 Pontiac Catalina Ventura
• 1969–1970 Pontiac Executive Base
• 1969–1970 Pontiac Executive Safari
• 1969–1970 Pontiac LeMans Safari
• 1969–1970 Pontiac Tempest Base
• 1969–1973 Pontiac GTO Base
• 1969–1974 Pontiac Grand Prix Base
• 1969–1977 Pontiac Firebird Base
• 1969–1977 Pontiac LeMans Base
• 1969–1978 Pontiac Catalina Base
• 1969–1978 Pontiac Catalina Safari
• 1969–1979 Pontiac Firebird Trans Am
• 1970 Pontiac Tempest GT
• 1970–1971 Pontiac GTO The Judge
• 1970–1977 Pontiac Firebird Esprit
• 1970–1977 Pontiac LeMans Sport
• 1970–1979 Pontiac Firebird Formula
• 1971 Pontiac LeMans T37
• 1971–1972 Pontiac Catalina Brougham
• 1971–1974 Pontiac Grandville Base
• 1971–1978 Pontiac Grand Safari Base
• 1972–1974 Pontiac LeMans Luxury
• 1972–1975 Pontiac Ventura Base

…and 18 more applications.

Specifications

Manufacturer part number

7812

UPC

85347078127

Shipping weight & size

3.80 lb, 10.8 × 6.7 × 1.7 in
