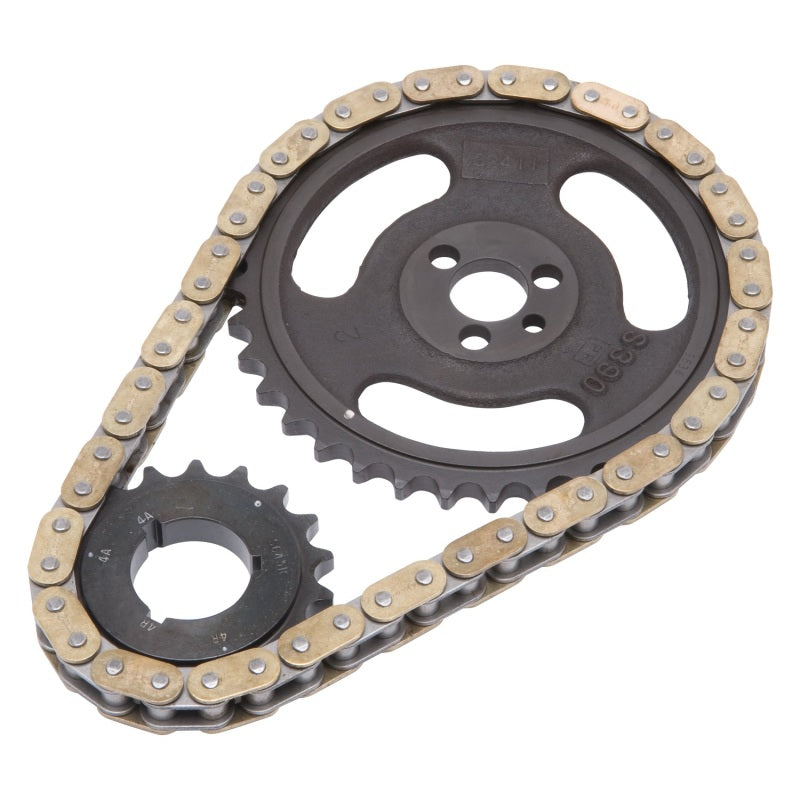

Edelbrock Timing Chain Performer-Link Chevy 1958-1965 V8 348/409 Inwin Series

Edelbrock part #7807 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Fitment

Chevrolet:W-Series:348 (5.7L)-409 (6.7L)

• 1958 Chevrolet Del Ray Base
• 1958 Chevrolet Sedan Delivery Base
• 1958 Chevrolet Truck Base
• 1958 Chevrolet Yeoman Base
• 1958–1961 Chevrolet Brookwood Base
• 1958–1961 Chevrolet Nomad Base
• 1958–1965 Chevrolet Bel Air Base
• 1958–1965 Chevrolet Biscayne Base
• 1958–1965 Chevrolet Impala Base
• 1959–1960 Chevrolet El Camino Base
• 1959–1961 Chevrolet Kingswood Base
• 1959–1961 Chevrolet Parkwood Base
• 1960 Chevrolet Biscayne Fleetmaster
• 1960 Chevrolet Truck Base
• 1960–1961 Chevrolet C10 Pickup Base
• 1960–1961 Chevrolet C20 Pickup Base
• 1960–1961 Chevrolet C30 Pickup Base
• 1960–1961 Chevrolet K10 Pickup Base
• 1960–1961 Chevrolet K20 Pickup Base
• 1960–1961 Chevrolet P20 Series Base
• 1960–1961 Chevrolet Suburban Base
• 1960–1965 Chevrolet P30 Series Base
• 1964–1965 Chevrolet Impala SS

Specifications

Manufacturer part number

7807

UPC

85347078073

Shipping weight & size

3.15 lb, 11 × 6 × 1.2 in
