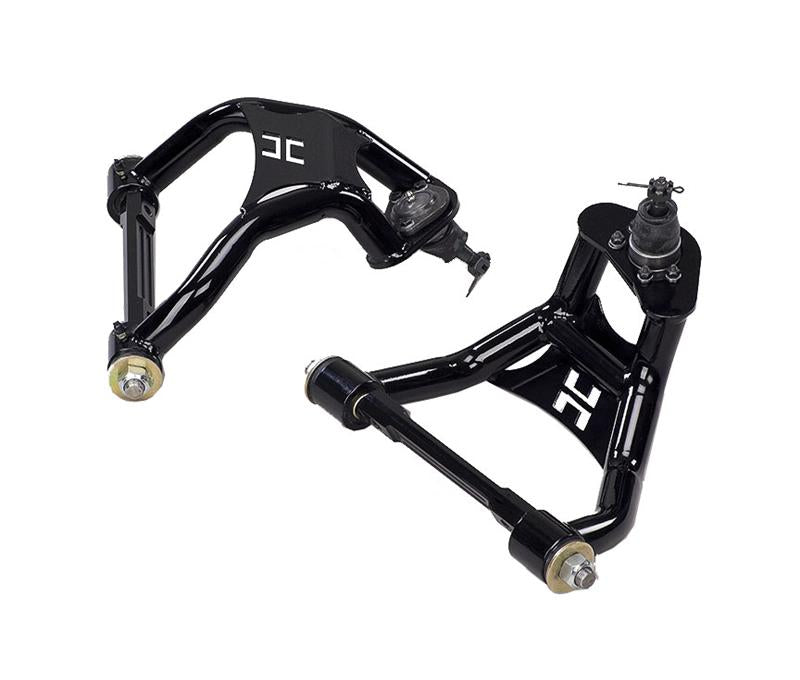

Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms
- Ships fast from US warehouses
- Local pickup available
- Professional install & dyno tuning in-house
Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms
Hotchkis Sport Suspension 1106 1970-1981 Camaro/Firebird Tubular Upper A-Arms. Install the geometry corrected Hotchkis Sport Suspension Tubular Upper A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on arms offer increased camber and caster adjustment over stock for ultimate driving performance. Finished in gloss black powder coat the Arms are ready to install and are complete with ball joints offset cross-shafts and smooth operating Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport Suspension Tubular Lower A-Arms. Features: Geometry corrected design. Built in - 1.1 deg of Camber 5.2 deg of Caster 100% TIG-welded 1.25 in. tubular steel construction. Silver zinc plated 4130 Chromoly billet cross-shaft. Easy to lubricate Delrin bushings. Upper ball joints and polyurethane droop stops installed. Laser cut Hotchkis logo. Gloss black powder coat finish Benefits: Offset Cross-Shaft allows increased static negative camber without a large alignment shim stack. Great for header clearance issues. Increased Caster improves high speed stability and camber gain during turning thereby increasing front tire traction. Smooth operating Delrin bushings allow minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg
Fitment
1970-1981 Camaro/Firebird
- 1970–1972 Chevrolet Camaro SS
- 1970–1973 Chevrolet Camaro RS
- 1970–1974 Chevrolet Camaro Z28
- 1970–1980 Chevrolet Camaro Base
- 1970–1981 Pontiac Firebird Base
- 1970–1981 Pontiac Firebird Esprit
- 1970–1981 Pontiac Firebird Formula
- 1970–1981 Pontiac Firebird Trans Am
- 1973–1978 Chevrolet Camaro LT
- 1975 Chevrolet Camaro RS
- 1975 Chevrolet Nova Custom
- 1975 Chevrolet Nova LN
- 1975–1978 Chevrolet Nova Police
- 1975–1979 Chevrolet Nova Base
- 1976 Chevrolet Nova SS
- 1976–1977 Chevrolet Nova Concours
- 1976–1978 Chevrolet Camaro LT Rally Sport
- 1976–1980 Chevrolet Camaro Rally Sport
- 1977–1979 Chevrolet Nova Rally
- 1977–1981 Chevrolet Camaro Z28
- 1978–1979 Chevrolet Nova Custom
- 1979–1981 Chevrolet Camaro Berlinetta
- 1981 Chevrolet Camaro Sport
Specifications
- Manufacturer part number
- 1106
- UPC
- 00810361030130
- Shipping weight & size
- 35.00 lb, 22 × 15 × 7 in
Documents
