The IAG 800 Short Block is designed for modified FA20 DIT Subaru WRXs that need a stronger short block to support increased cylinder pressures created by additional boost pressure and larger turbochargers. The IAG 800 short block features our proprietary closed-deck cylinder support system to strengthen the OEM FA20 cylinder walls. The short block is fitted with IAG Spec H-Beam forged connecting rods. Head gasket sealing is handled with the addition of an o-ring and 1/2" head studs for additional compression of the head gasket. These upgrades are ideal for those seeking to get the most out of their full bolt-on and upgraded turbo WRXs. The IAG 800 short block starts with new Subaru FA 2.0L engine case halves that are machined for improved oiling. Then IAG machines the case halves assembled together in our Haas VF-4SS CNC mill to accept the IAG Closed Deck Inserts that transform the block into a solid deck. The unique inserts feature small passages that allow needed coolant flow to the deck surface. The case halves are then CNC machined with O-ring receiver grooves around the bore surface as well as drilled and tapped to accept 1/2" head studs that greatly reduce head gasket failure during high cylinder pressure scenarios. Next, the short block is Deck Plate bored and honed that to 86.25mm on our in-house Sunnen SV-30 cylinder hone. IAG's in-house honing process is able to set piston to wall clearances tighter for a quieter running engine. The short block is measured and assembled using a new 2020 Subaru 2.0L WRX crankshaft that is matched to ACL or King main bearings. IAG-Spec H-Beam rods with ARP2000 rod bolts are utilized, along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.25mm forged pistons are installed, along with an OEM oil plug finishing off the short block.

Fitment

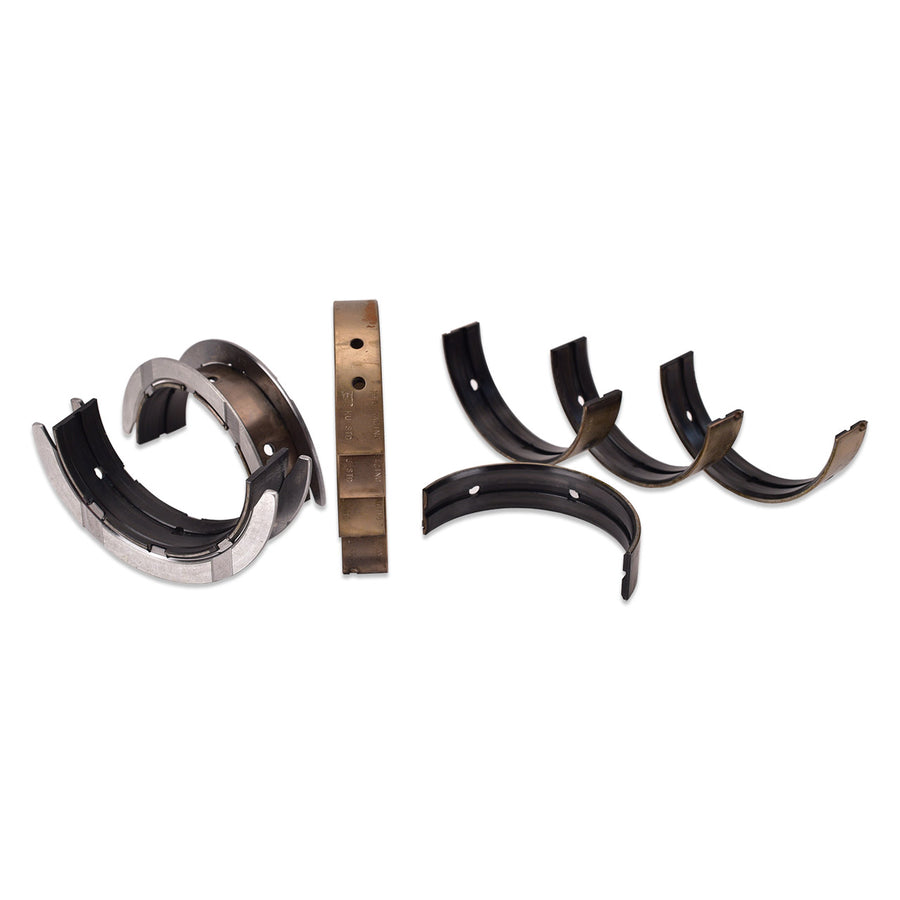

800 FA20 2.0L Short Block Includes: Case Halves - Brand new OEM Subaru FA20 case halves, bored and honed to 86.25mm, Case Machining - Modified for improved oiling, Case Machining - Bored and honed to 86.25mm, O-Ringing - Machine and O-Ring Deck Surface, Head Studs - Machine Case for 1/2" head studs - Head Studs are sold Separately, Pistons - IAG-Spec JE 86.25mm Forged Pistons, Ring Set, and .230" x 2.250" 9310 Nickel Carbon Steel Wrist Pins, Connecting Rods - IAG-Spec H-Beam / ARP2000 Rod Bolts, Rod - ACL or King XPG, Main Bearings -ACL or King XPG, Crankshaft - New Subaru FA20 DIT WRX crankshaft, Case / Main Bolts - Standard Subaru case bolts, Hardware - OEM Oil Plug - comes preinstalled at the oil pan location

Specifications

Manufacturer part number

IAG-ENG-S800

UPC

00887753904225

Shipping weight & size

100.00 lb, 21 × 17 × 21 in
